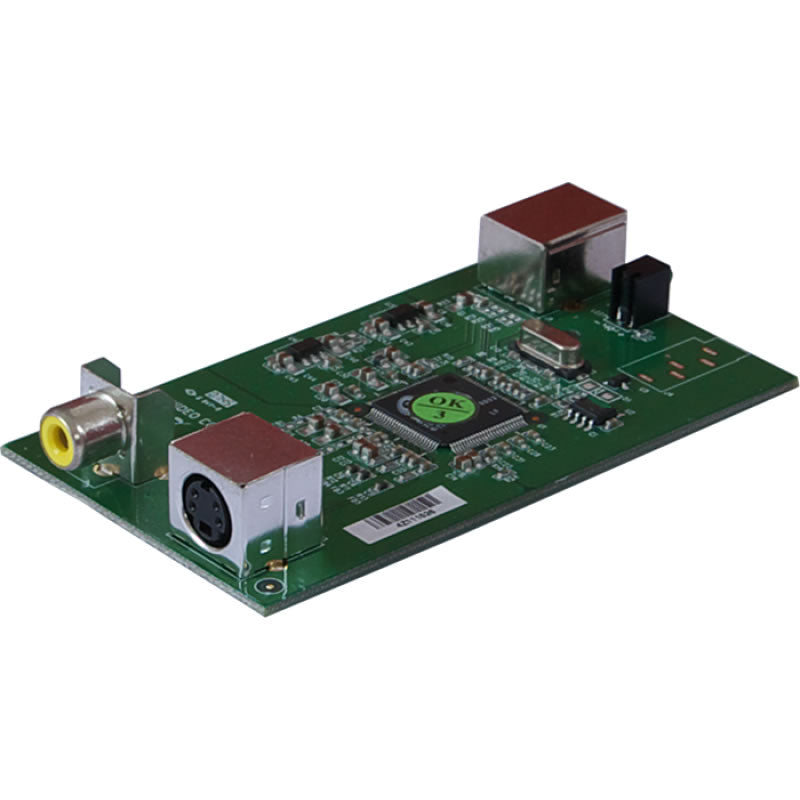

Imaging Source DFG/USB2propcb Video-to-USB 2.0 converter

$207.00

SKU: DFG-USB2PROPCB

Description

Specifications

Downloads

GENERAL BEHAVIOR
Video formats @ frame rate (maximum)	PAL: 768×576 (0.4 MP) @ 25 fps NTSC: 640×480 (0.3 MP) @ 30 fps
Video standards	PAL/NTSC, RS-170/CCIR
Analog inputs	RCA (Cinch): 1 input Y/C (S-Video): 1 input Multiplexed
Bus interface	USB 2.0, Type B
Color formats	UYVY, Y800
Square pixels	yes
ENVIRONMENTAL
Temperature (operating)	0 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)

Color Formats

UYVY and Y800

Input

Analog: RCA (Cinch): 1 inputs, Y/C (S-Video): 1 inputs

Output

Bus Interface: USB 2.0, Type B

Output Formats @ Frame Rate (maximum)

PAL: 768×576 (0.4 MP) @ 25 fps, NTSC: 640×480 (0.3 MP) @ 30 fps

Square Pixel

Yes

Power

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 200 mA @ 5 VDC

Dimensions

H: 18 mm, W: 50.8 mm, L: 91.5 mm

Weight

100 g

Temperature (Operating)

0 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
