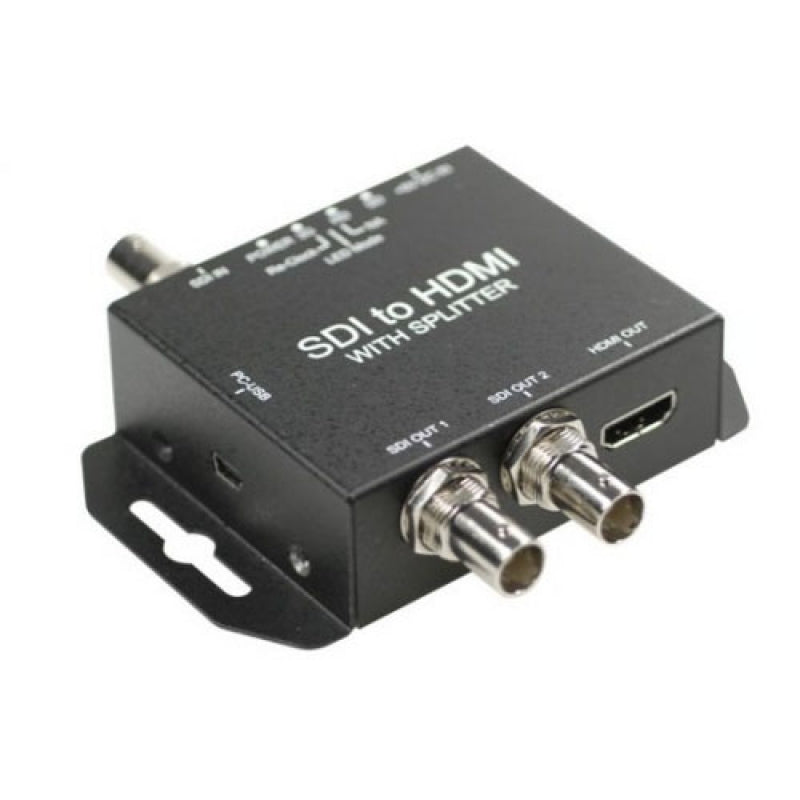

- 3G/HD/SD-SDI to HDMI Video Converter with Scaling
- Simultaneous 1 x HDMI and 2 x SDI output
|
Simultaneous 1 x HD and 2 x SDI Output Video Converter During the integration of your camera you may need a few things along the way. We currently have the RHP-3GSDI-HDMI-S which is a 3G/HD/SD-SDI to HD Converter with Scaling
|
|
|
What is 3G-SDI and HD-SDI? Generally spoken 3G-SDI is a successor technology to the well known and popular HD-SDI interface. It uses the same connectors and coaxial cables and is also completely downwards compatible. In a nutshell, it provides an increase in bandwidth which allows both higher resolutions and frame rates through a single connection. "Traditional" HD-SDI is a global standard, specified in SMPTE292M and allows HD video data to be transmitted as 10bit YUV (correctly: YCbCr) at 1.485 Gbit/s. Ancillary data such as time code and audio are embedded in the signal. Higher picture quality and frame rates such as RGB 4:4:4 or 50/60p can be realized through dual-link SDI connections. Dual link is also used for Stereo3D playback and record of two separate video streams in full resolution. |
|
|
What is HDMI? HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device.<1> HDMI is a digital replacement for existing analog video standards. |
|

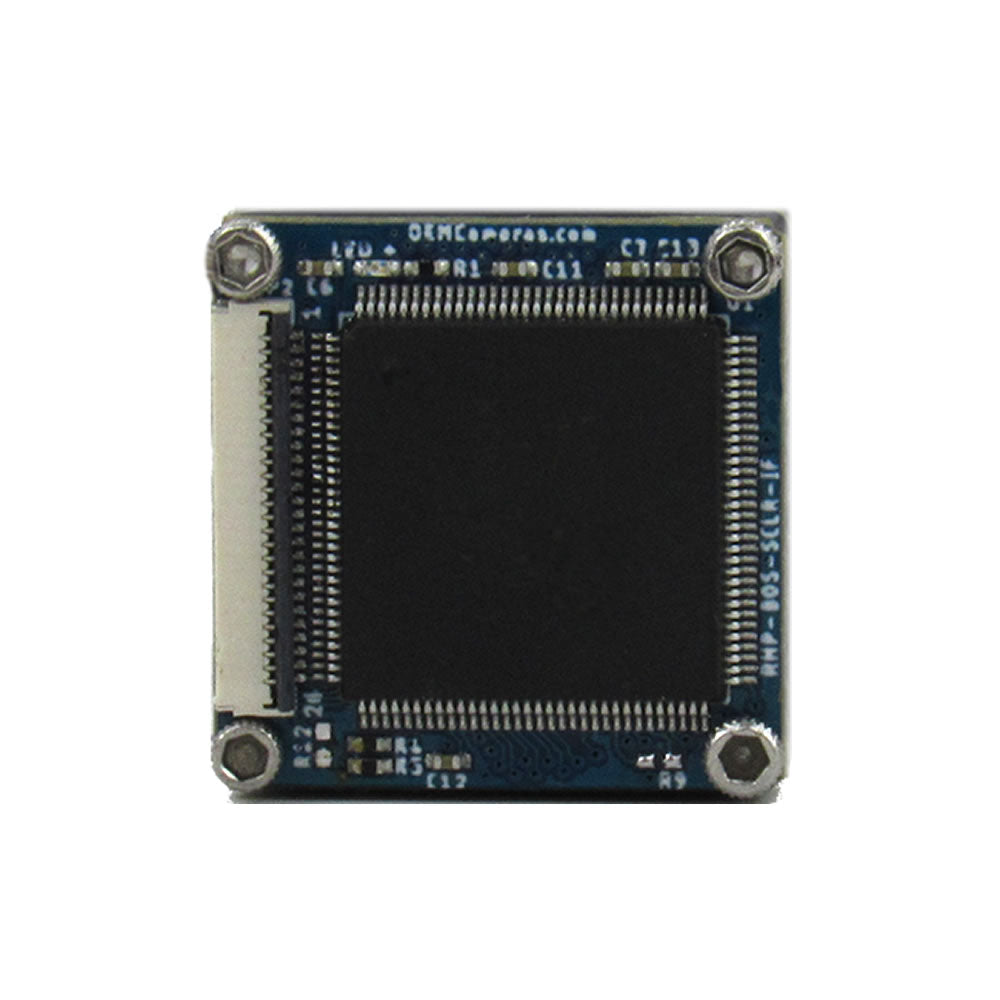

RHP-BOS-RC-HD-IF
Integrate the Teledyne FLIR Boson into your UAS.
The RHP BOSON RC-HD-IF REMOTE CONTROL INTERFACE is the perfect solution where HD thermal Video is needed. With 6 to 26 Volts DC input, HD and Composite outputs, and Reverse Polarity Protection, this interface is built for durability. Control the interface with an RC Receiver, enjoy USB Video Support, and take advantage of features like S-Bus & PWM compatibility and compatibility with most digital HDMI transmitters. Paired with the Setup and Calibration Software and a weight of only 12 grams, this interface is easy to install and perfect for any use case.
The RHP-BOS-RC-HD-IF is used to control the Boson camera remotely using a 16-channel S-Bus signal or up to 5 PWM signals from your wireless joystick remote control system. It allows for the assignment of available parameters on the Boson to any knob, switch, or lever on your remote controller, giving you the ability to adjust camera parameters on-the-fly. The module can accept a wide input voltage range of 6 to 26 Volts DC with reverse polarity protection while powering your Remote Control receiver with a regulated 5 Volts DC. It has both HD and composite video outputs, enabling it to connect to two separate video devices with no signal loss. With the HD video output, video signal can be transmitted securely through a video transmitter in 720 or 1080p, while the analog output makes it possible to connect to a recording device.
Customize and Save Configurations
Save configurations for different applications.
• Control via PC
• 16 Channels (S-Bus)
• 5 Channel PWM.
• 5 Channel D-Pad.
• Customize and Assign parameters.
Video Outputs
Output video signals to Analog and HD simultaneously.
• Composite Output
for use with analog transmitters.
• HD Output
use with the latest digital technology.
• Ideal for digital SD recording devices
Control the Boson Remotely
Assign any available parameter on the Boson for ‘on-the-fly’ control.
• Continuous Digital Zoom
• Color Palette Selection
• (FFC)Flat Field Correction
• (DDE)Digital Detail Enhancement
• Wired or Wireless control
