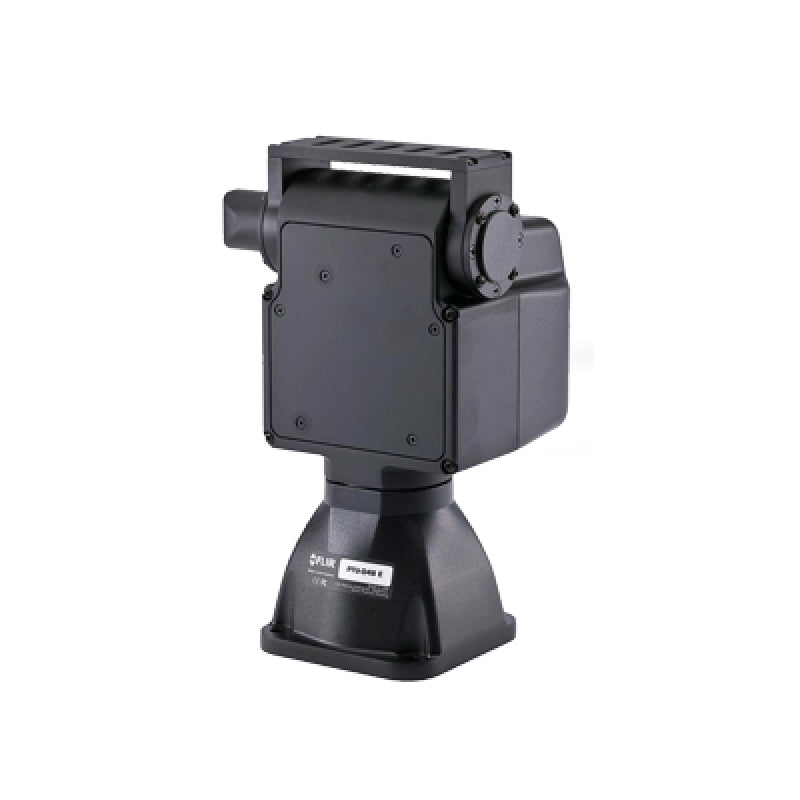

Teledyne FLIR D48E Pan-Tilt Motion Control System
$7,310.00
FLIR PTU-D48E
PAN/TILT UNIT FOR SIDE-MOUNTED PAYLOADS UP TO 15 LBS
The PTU-D48 E-Series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. The real-time command interface supports advanced applications such as video tracking. The PTU-D48 E-Series has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments. It is designed for high duty cycles and reliable operation 24/7 in harsh all-weather environments.
HIGH PERFORMANCE WITH HEFTY PAYLOADS
With payload capacity up to 15 pounds and precise positioning, D48 pan/tilts have a wide range of pan speeds for smooth, precise control.
RUGGED PRECISION POINTING
Precise, real-time control of position, speed, and acceleration — plus a rigid worm gear design — provides steady positioning in windy environments and vehicle-mounted applications.
POWERFUL PERFORMANCE
With integrated Ethernet and Web interfaces, increased command rates, reduced jitter, and advanced microstep control, D48 pan/tilts provide advanced performance.
|

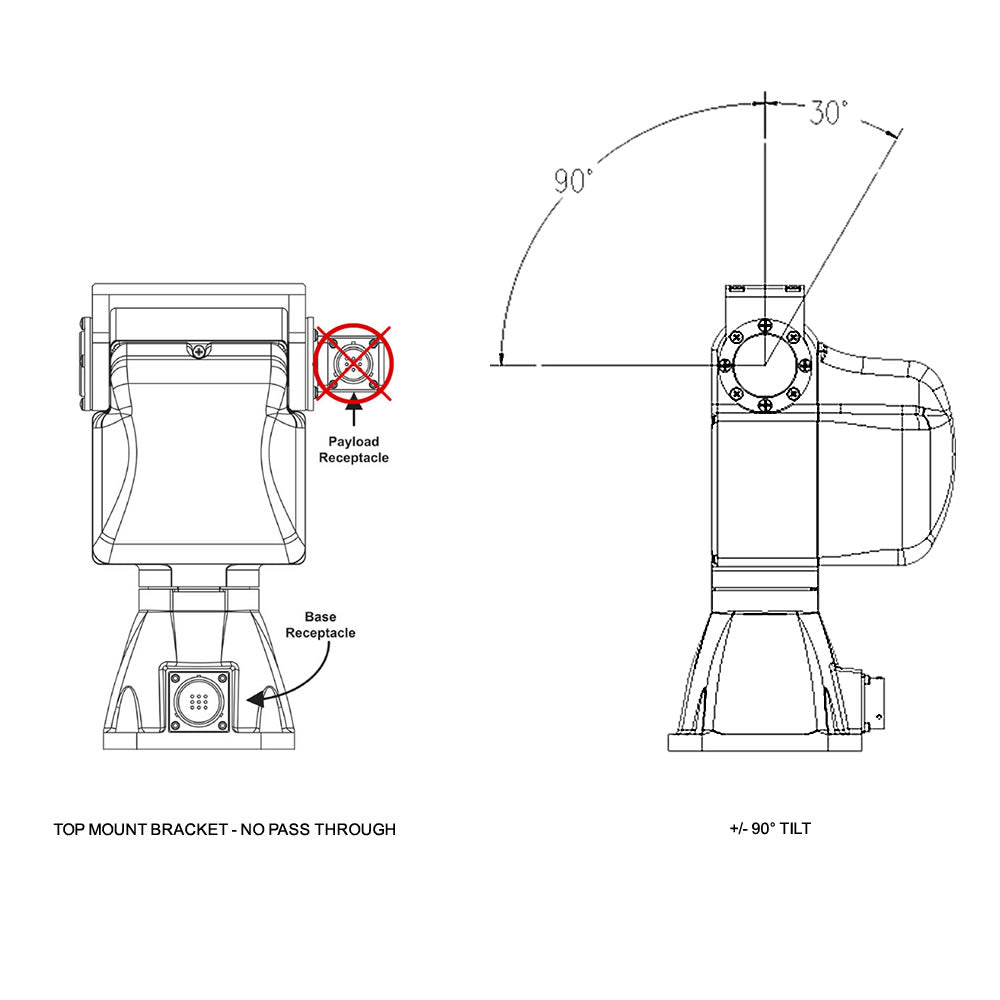

TOP MOUNTING BRACKETS (TMB) |
TMB incl. w/ D48E-SS
No TMB PN: D48E-SN |
|
TOP PAYLOAD CAPACITY |
10 lbs / 4.5 kg |
|
SIDE MOUNTING BRACKETS (SMB) |
1 or 2 SMBs can be purchased & installed |
|
SIDE PAYLOAD CAPACITY |
15 lbs / 6.8 kg |
|
TOTAL PAYLOAD CAPACITY |
The combined weight of top and side payloads (if using both) cannot exceed the side payload capacity rating |
