Teledyne FLIR FC-669 AI-R 640 x 512 9MM 69° HFOV - LWIR Thermal Radiometric Security Camera

$9,699.00

•Uncooled VOx Microbolometer
•Frame Rate: NTSC: 30 Hz - PAL: 25 Hz / 8.3 Hz
•Array: 640 x 480
•FoV: 69°(H) x 56°(V)
•9mm Lens
•Pixel Pitch: 17µm
•Focal Length: f/1.4
•Reliable on-board analytics
•Best-in-class perimeter protection
•Integrates with analytics
•Industry-Leading image quality
•Expanded selection of high-performance lenses

Notice: This product is export controlled. This item is subject to US export controls. By checking this box, I acknowledge that this thermal imaging camera requires an export license for international shipments.

SKU: FC669R30

Description

Specifications

Downloads

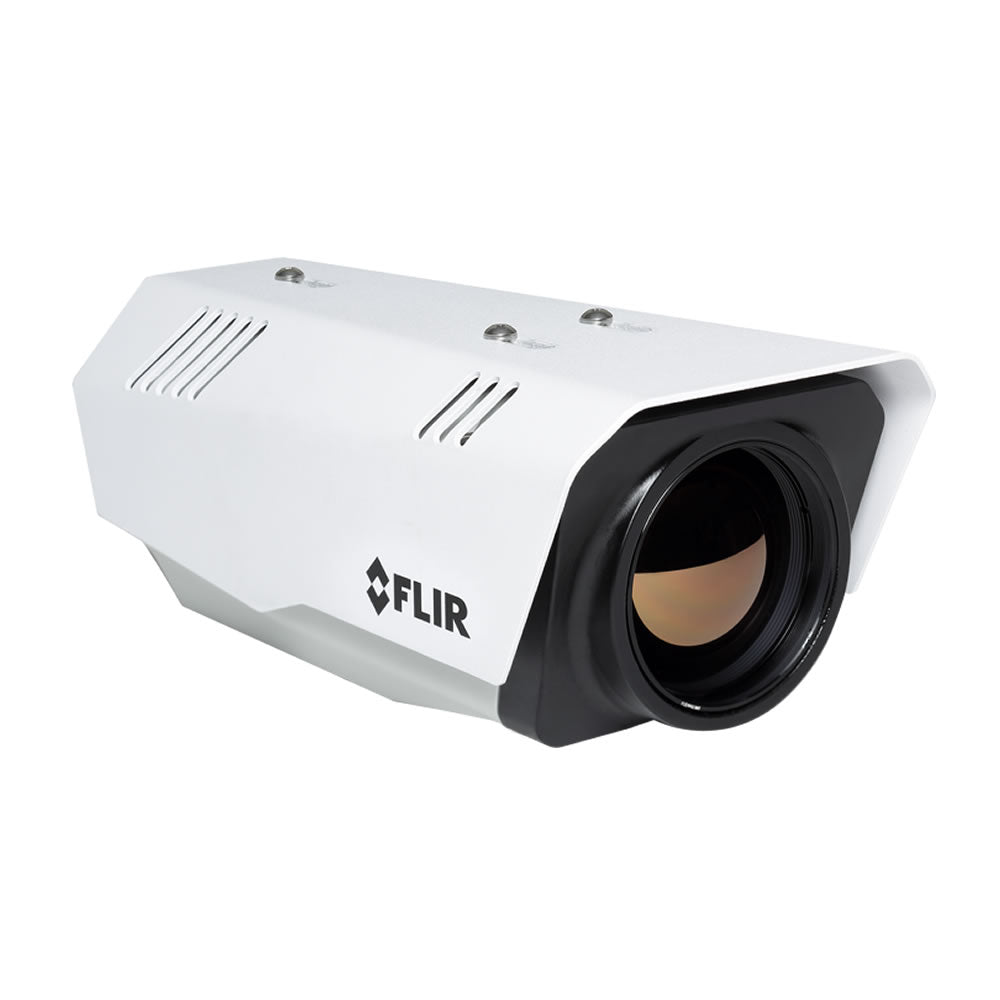

FLIR FC-669 AI-R

LWIR Thermal Radiometric Security Camera

The FC-Series AI-R is a rugged thermal radiometric camera designed to detect hot spots and fire risks in demanding environments such as warehouses, landfills, and storage facilities.

It continuously monitors temperature changes and sends real-time alerts to a VMS when thresholds are exceeded. Combining DNN analytics with <35 mK sensitivity, it delivers reliable detection and clear thermal imaging.

CONTACTLESS HOT SPOT DETECTION

Real-time temperature monitoring
Detect overheating and failing components
±5°C accuracy for targets under 150°C

ADVANCED THERMAL IMAGING

Multiple lens options for varied fields of view
Clear imaging in smoke, fog, and low light
Enhanced contrast with AGC and DDE
Full 640 × 512 resolution output

INTELLIGENT ALARMS & INTEGRATION

Custom temperature thresholds with real-time alerts
Reduced false alarms via analytics filtering
Seamless VMS integration (FLIR + third-party)
PTZ handoff with NEXUS® geolocation

Resolution

640 x 512

Pixel Pitch

17 µm

Spectral Band

LWIR | 7.5 µm – 13.5 µm

Sensitivity/NEdT

≤35 mK @ 25°C (77°F) for f/1.0

Frame Rate

30 Hz

["Zoom"]

["4x continuous E-Zoom"]

Radiometry

Yes

Temperature Accuracy

Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy Target below 150 °C (302 °F): ± 5% accuracy Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Er

Object Temperature Range

High Gain Mode: 0ºC to 160ºC (32ºF to 320ºF), Low Gain Mode: 0ºC to 380ºC (32ºF to 716ºF), Video analytics only functional in High Gain Mode

Field of View

69°(H) x 56°(V)

Focal Length

9mm

f-number

f/1.4

Dimensions (L x W x H)

259 × 114 × 106 mm

Weight

2.2 kg (4.75 lbs.)

Input Voltage

12 VDC 24VAC PoE

Composite Video NTSC or PAL

Hybrid system with IP & analog video

Analytics Features

Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier

Analytics Management

Web-based configuration and management, Masking of analytic detection areas, adjustable sensitivity,automatic responses, remote I/O control

Digital Video Compression

Two independent channels of H.264 and MJPEG

IP Rating

IP66 & IP67

Humidity

0-95% relative humidity

Image Uniformity Opt.

Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers

Certifications

IEC 62368
