ioi PTZ Tracker Distributed Intelligent Video Encoder

$0.00

• HYBRID CONNECTIVITY
• INCREASE DETECTION RELIABILITY
• EASY SET-UP AND OPERATION

Discontinued Item

This item is available by quote only. View your quote list

SKU: ioi-ptz-tracker
Description
Specifications
Downloads

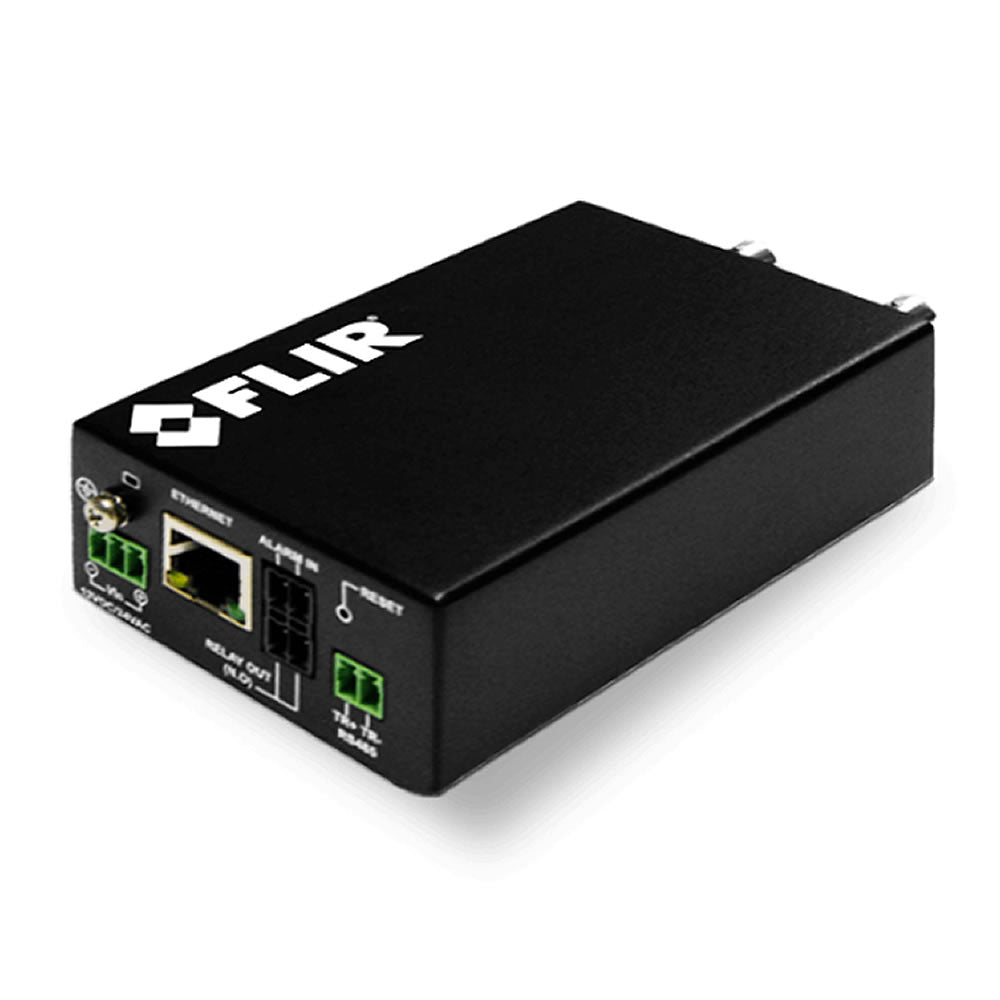

ioi PTZ Tracker

Distributed Intelligent Video Encoder

The PTZ Tracker analyzes video signals and sends alarm notifications when people, vehicles or objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from scenes. Users can customize zones and define what to detect. With Pan/Tilt/Zoom (PTZ) cameras, once a moving object is detected, the PTZ tracker automatically controls the PTZ camera to autonomously track and zoom in on potential threats.

HYBRID CONNECTIVITY

The ioi PTZ Tracker streams both analog and IP video (H.264, MPEG-4 SP and MJPEG) for legacy or IP-based CCTV networks.

INCREASE DETECTION RELIABILITY

DSP-based real-time video analysis and up to five simultaneous intrusion detection rules improve the probability of detection and reduce false alarm rates.

EASY SET-UP AND OPERATION

The unit features storage on the Edge (SoE) with remote backup, and can be configured within five minutes using a standard web browser.

Dimensions

2.7 x 1.42 x 4.61" (W x H x D) | 68.5 x 36 x 118mm (W x H x D)

H.264 Frame Rate (PAL/NTSC)

D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS

Mounting

Shelf/optional rack-mounting (single-unit or multiple-unit accessory)

MPEG-4 SP Frame Rate (PAL/NTSC)

Up to 25/30 FPS for all resolutions

Number of Intelligent Video Analysis Channels

1

Operating System

Windows 7, 8 and 8.1, 10

Power Consumption

DC: 3.6W, AC: 6W

Storage on the Edge

3,800Mb event recording

Voltage

12VDC (+/-10%), 24VAC

Alarms/Commands

TCP/IP, HTTP

Browsers

Internet Explorer 10 and 11

Ethernet (IEEE 8023-8023u)

1 x RJ45 interface

IN - Alarm Input

1x dry contact

OUT/Relay Output

1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz)

Physical Connector

1x BNC 75Ω

Serial

1x RS-485 (for PTZ camera control)

Services and Protocols

TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP

TV Standard

Composite 1Vp-p – NTSC or PAL

Bit Rate

CBR (128Kbps – 4Mbps), VBR

IP Video Streaming

H.264, MPEG-4 SP, MJPEG

Video Streaming

RTP/RTSP

Electromagnetic Interference

(EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A

Environmental

RoHS

Operating Humidity

5% to 95% (non-condensing)

Operating Temperature

0° to 60°C (32° to 140°F)

Safety

UL, CE
