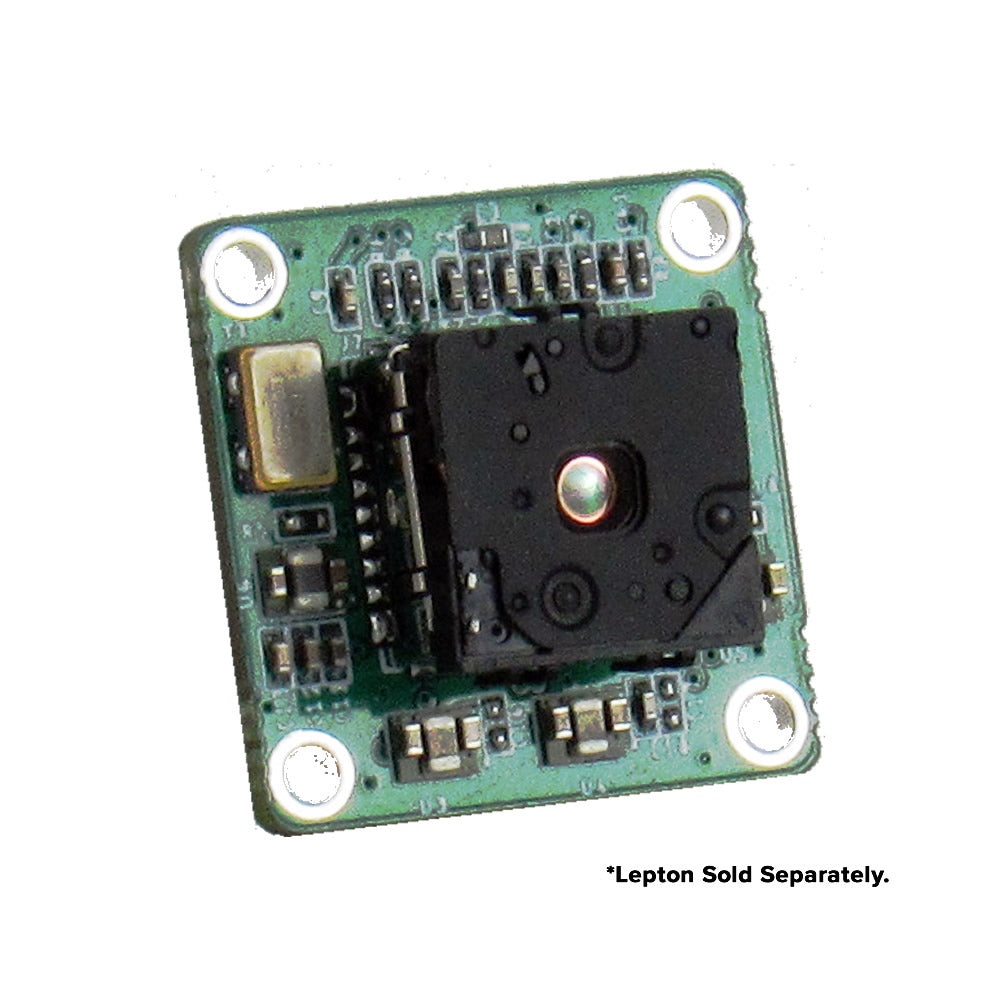

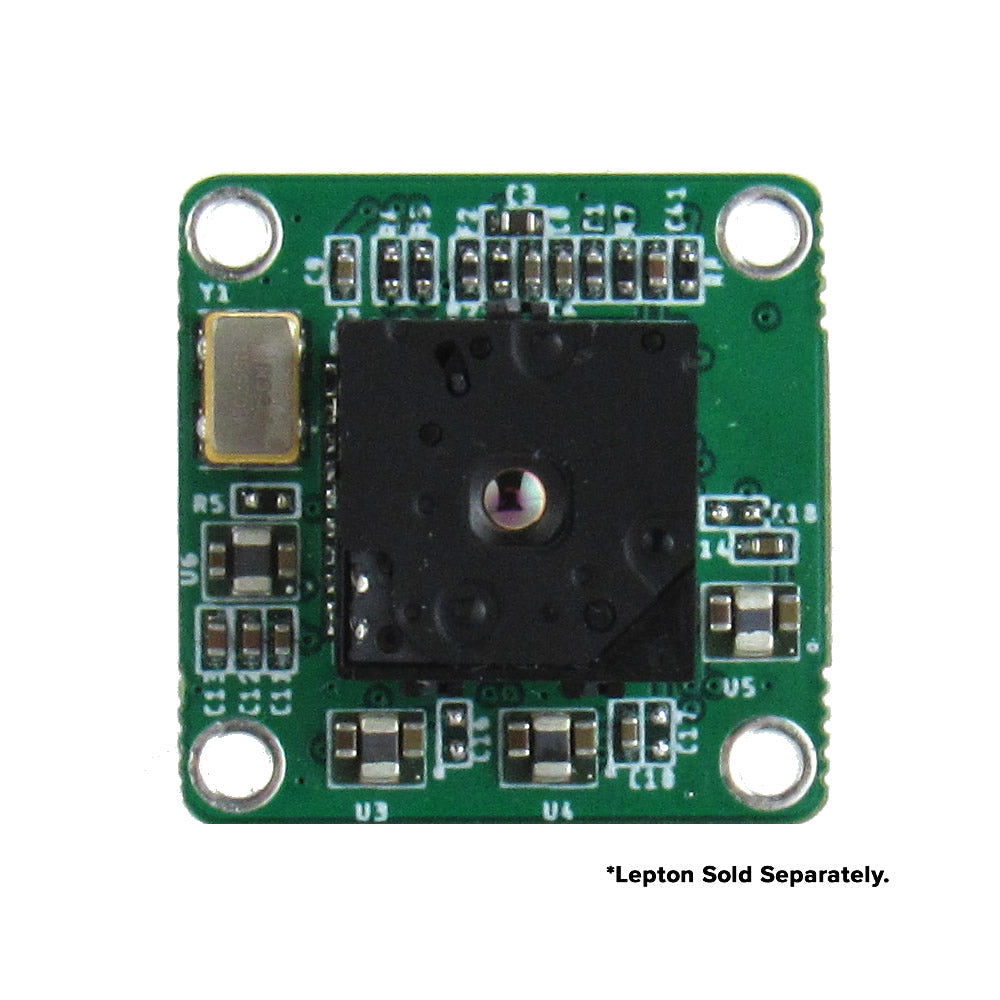

Low Profile Lepton USB VPC Interface Module

$95.00

• VPC - Video, USB Power & Communication
• Power via 5Volt USB
• USB Video Support
• Stream Video to PC via USB
• Low Profile
• Works with FLIR Lepton 3.5 radiometric

We usually have a majority of these items in stock. Please call or contact us for availability.

SKU: RHP-LEP-VPC-IF
Description
Specifications
Downloads

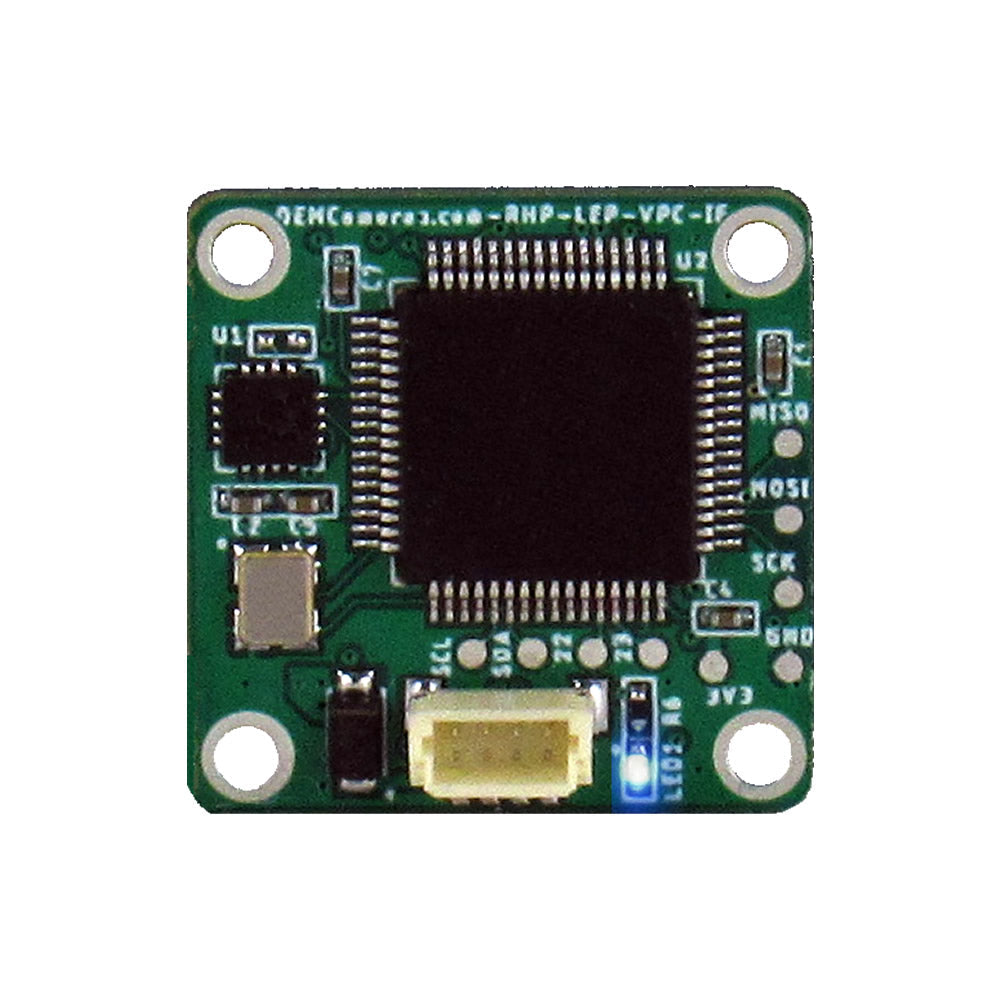

RHP-LEP-VPC-IF

USB Video Power Communication Interface

Simple Integration

The Low Profile Lepton VPC Interface Module simplifies integration. One Video & Power connection on the Low Profile Boson VPC Interface Module allows for a variety of installation options.

FLIR Lepton GUI Friendly

You can adjust parameters available on the FLIR Lepton using the RHP Lepton GUI when connected to your PC via the supplied USB cable.

Reverse Polarity Protected

With the intelligent polarity sensing protection, the RHP-LEP-VPC-IF can be powered from the 4-Pin JST port to USB 5VDC power source.

Power Requirements: 5 Volts DC USB
Power Dissipated: Avg. 0.84W - Max. 2W
Dimensions: 21mm x 21mm x 10mm (without Lepton)
21mm x 21mm x 13mm (with Lepton)
Weight: 2.6 grams
Control: USB 2.0

Control Channels

USB 2.0 (Video + Control)

Input Voltage

5VDC USB Connection

Connector

1x 4-Pin JST Connector

Power Dissipation

<0.1W (Camera Not Included) 3.5W Max With Camera, 6W Total Fused

Operating Temperature Range

-10 °C to 80 °C

["Storage Temperature Range"]

["-50°C to 105°C"]

Video Channels

USB Digital Video

Weight

2.6g without camera 3.6g with camera

Dimensions (L x W x H)

21x21x10 (without Lepton) 21x21x13 (with Lepton)
